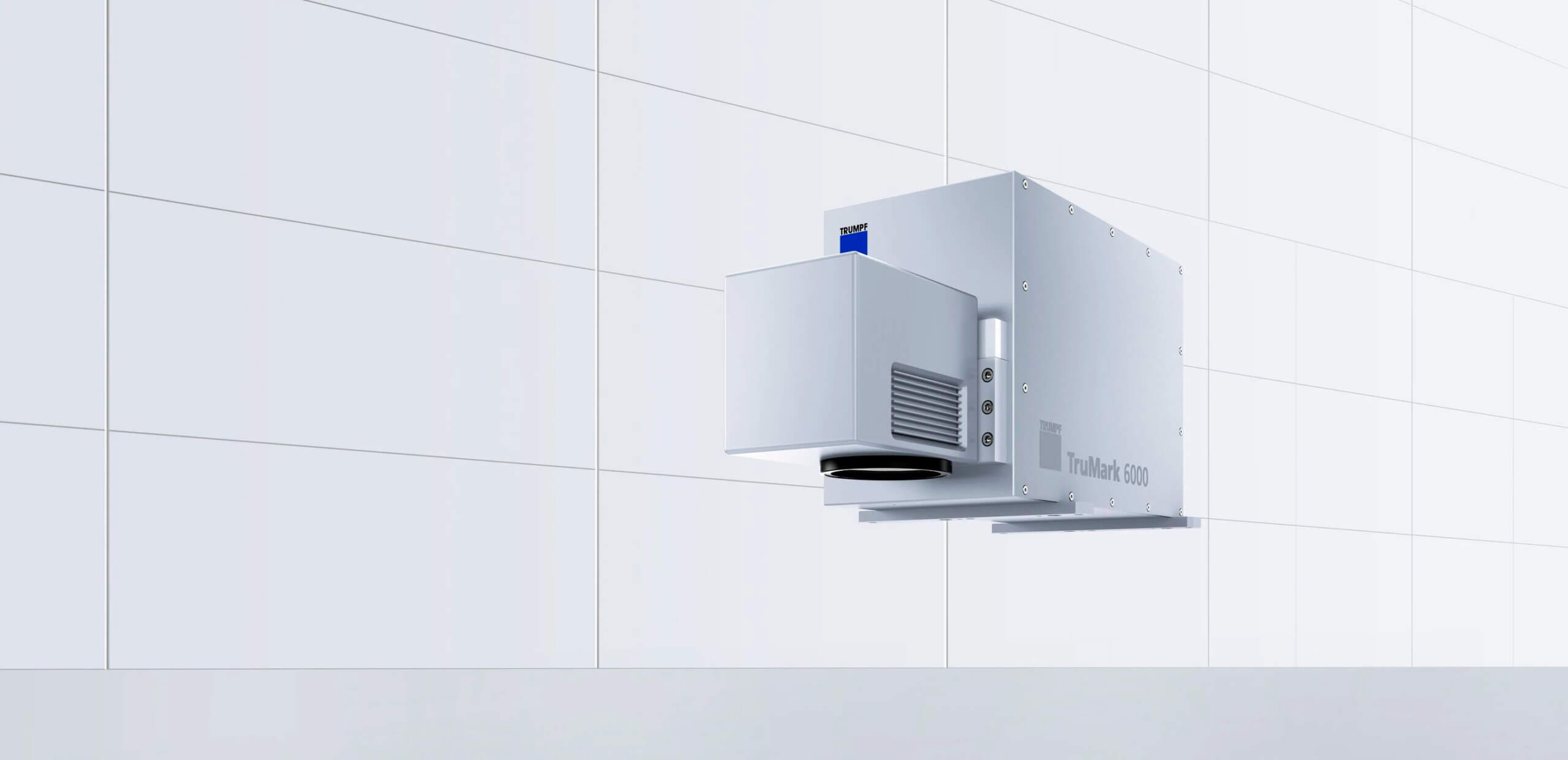

TruMark 6030
Make the most of the productivity and excellent beam quality provided by the next generation of marking lasers
Yleistä
More speed, more precision, more flexibility – the demands placed on laser engraving, ablation, marking, and annealing are continuously growing. With the TruMark 6030 marking laser you will enter a whole new generation of marking while simultaneously opening up a new dimension with the new 3D functionality. The TruMark 6030 delivers high power and brilliant beam quality, both of which are essential for optimal results in any industry. Complemented by modern image processing solutions and high productivity, it increases your performance as well as marking quality.
Ominaisuudet
- 25% shorter process times
Due to a high level of available average power as well as increased pulse repetition frequencies, you can work on workpieces with even greater productivity.
- Utmost stability
Due to integrated power regulation you can mark with the exact power that you set for the process.
- Plug in and go
Many interfaces, a removable connecting cable, as well as the 19-inch plug-in unit allow you to integrate the laser quickly into your production.
- Robust and reliable
Modern production technologies and powerful optical components make the marking laser a high-end industrial device.
- Open up a new dimension
The new TruTopsMark 3D marking software allows you to mark 3D components conveniently and with flexibility.
- Easily scalable
Adjust the power for the respective process linearly, over the entire frequency range.
Tekniset tiedot
TruMark 6030 |
|---|
| LASER PARAMETERS | |
| BEAM QUALITY (M²) | < 1.3 |
| WAVELENGTH | 1030 nm |
| PULSE REPETITION FREQUENCY | 40 kHz – 200 kHz |
| MINIMUM FOCAL DIAMETER | 50 μm |
| MAX. MARKING VOLUME | 330 mm x 330 mm x 100 mm |
| STRUCTURAL DESIGN | |
| DIMENSIONS OF LASER HEAD (W X H X D) | 156 mm x 214 mm x 435 mm |
| DIMENSIONS OF SUPPLY UNIT (W X H X D) | 446 mm x 222 mm x 495 mm |
| INSTALLATION | |
| AMBIENT TEMPERATURE | 15 °C – 40/45 °C |
