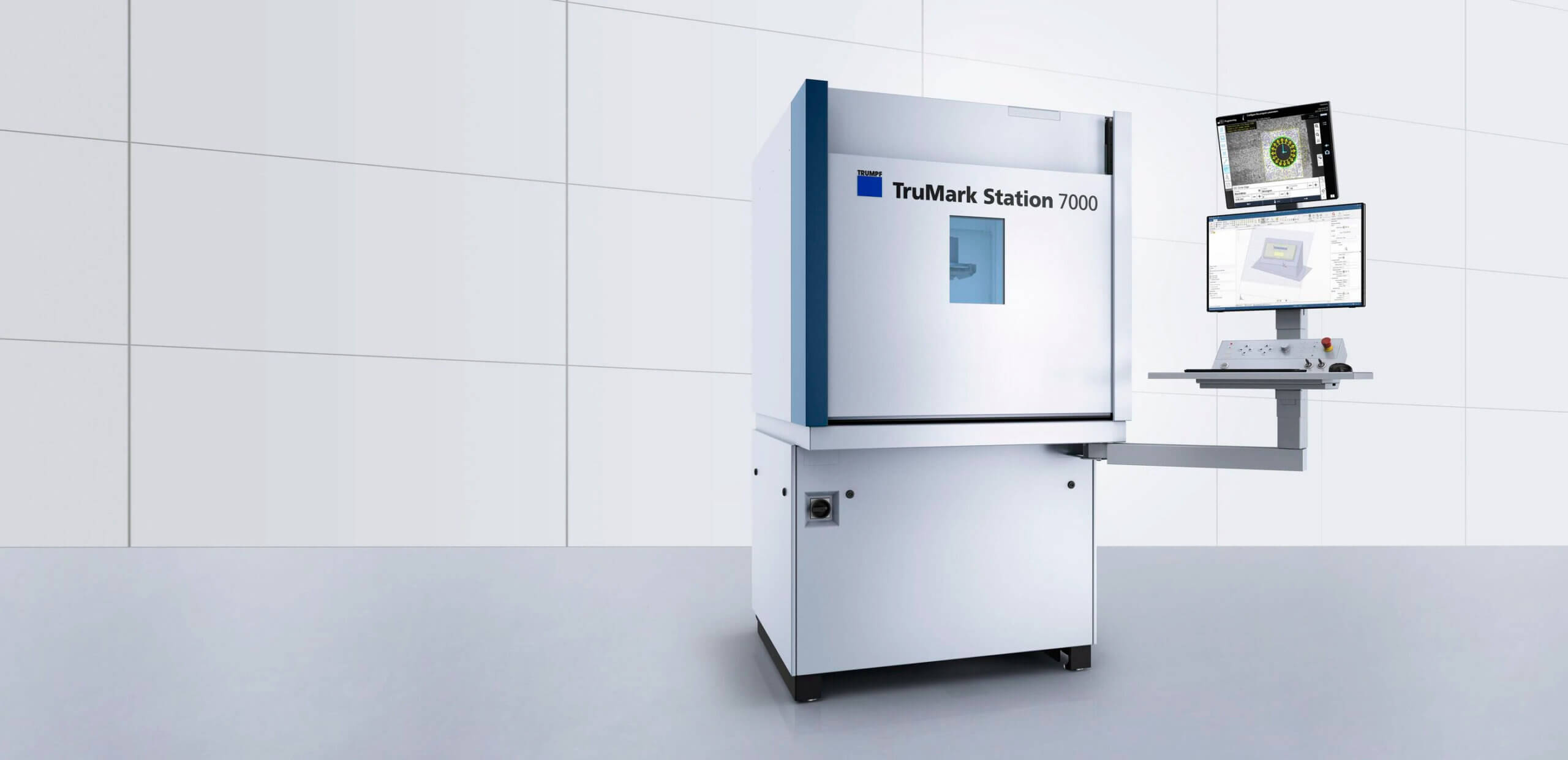

Suurten sisämittojensa ansiosta lasermerkintäjärjestelmä melkein mihin tahansa lasermerkintäsovellukseen
Pyydä tarjousSuurten sisämitojensa ansiosta TruMark Station 7000 -lasermerkintäjärjestelmä tarjoaa suuren määrän tilaa melkein mihin tahansa lasermerkintäsovellukseen. Lasermerkintäasemalla on mahdollista merkitä keralla, joko suuri 100 kg painava komponentti tai suuri määrä pieniä osia. TruMark Station 7000: voidaan varustaa kääntöpöydällä, mikälisää selvästi aseman tuottavuutta. Asemassa on erinomainen ergonomia ja moottoroitu ovi, mikä tarjoaa turvallisuutta ja parantaa tuottavuutta avaamalla ja sulkeutumalla nopeasti. Voit myös avata tai sulkea oven osittain. Aseman nopeasti liikkuvat X, Y ja Z akselit pitävät tuottamattoman ajan minimissä. Asema on mahdollista varustaa myös Visonline konenäköjärjestelmällä. Erilaiset lasermerkintä huurujen poistojärjestelmät, varmistavat, että työympäristö on päästötön myös suurta lasertehoa käytettäessä. Työaseman keskeisenä rakenteena on polymeeribetonilevy, mikä tuo työasemalle erinomaisen tukevuuden ja värinänvaimennuskyvyn.
The large work area and many options mean that the station is ideal for large batch sizes – especially with the rotary table.
The well-thought-out design of the work station counteracts operator fatig
One user interface for operating the axes, laser parameters, and external communication
The laser power on the workpiece remains entirely unaffected due to the powerful surface exhaust system or the more precise spot exhaust system. This allows the quality of the marking to remain consistent.
For every application, various TRUMPF beam sources, pulse durations, and power classes can be combined with the station with flexibility. This allows for perfect application results.
The combination of vibration dampening polymer concrete plate and rotary table unit allow heavy components to be loaded and processed at the same time, without affecting the marking parallel to the cycle time.
TruMark Station 7000 uses a polymer concrete plate as the main design component. Construction includes the laser supply unit integrated into the machine frame, as well as the integrated rotary axis for circumference marking in addition to other features.
You can mark workpieces of a wide range of sizes inside the TruMark Station 7000. The laser can be moved using two axes in the X and Z direction. The work surface positioning in the Y direction opens an extensive, easily accessible work area.
With our rotary table system, you don’t need to forego the x and z axes. You can mark the entire area of the rotary table, and process beyond the marking field as the laser moves beyond the component.
WORKPIECE SPECIFICATION | |
MAXIMUM WORKPIECE DIMENSIONS (W X H X D) | 1000 mm x 450 mm x 650 mm |
AVAILABLE MOTORIZED AXIS | |
TRAVERSE PATH OF THE Z AXIS | 500 mm |
TRAVERSE PATH OF THE X AXIS | 650 mm |
TRAVERSE PATH OF THE Y AXIS | 350 mm |
Z TRAVERSE SPEED | 6 m/min |
X TRAVERSE SPEED | 6 m/min |
Y TRAVERSE SPEED | 6 m/min |
CONNECTION AND CONSUMPTION | |
ELECTRICAL CONNECTION (VOLTAGE) | 115 V – 230 V |
ELECTRICAL CONNECTION (FREQUENCY) | 50 Hz – 60 Hz |
DIMENSIONS AND WEIGHT OF WORK STATION | |
DIMENSIONS OF WORK STATION (W X H X D) | 1150 mm x 2000 mm x 1410 mm |
LASER CLASS | |
LASER CLASS | 1 |
