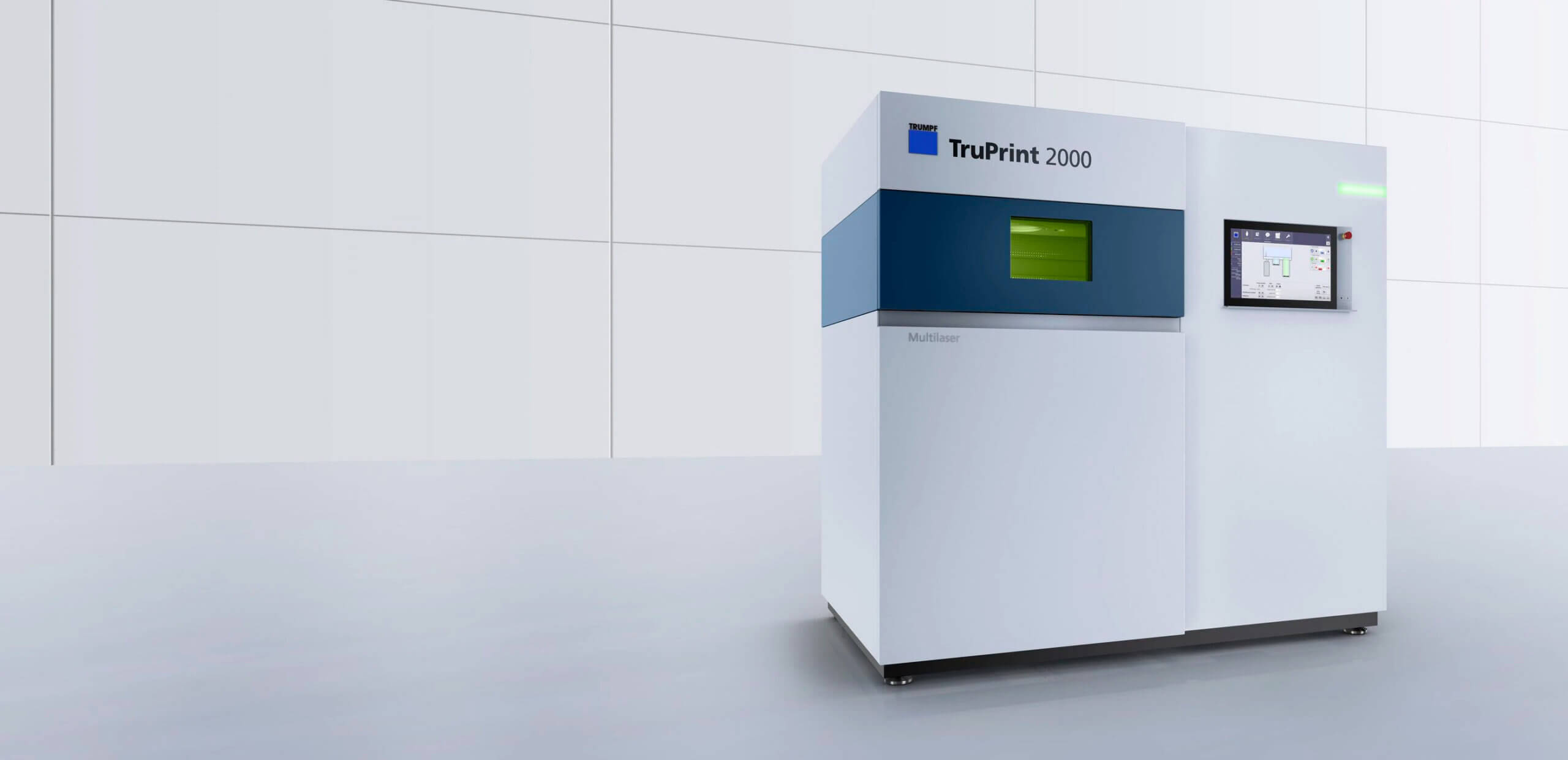

TruPrint 2000, Laser Metal Fusion
Economical 3D printing with premium quality
Yleistä
Make the most out of the cost-effective 3D printing with premium quality
With its small 55-µm laser beam diameter, the TruPrint 2000 provides a high-quality printing result which impresses with its surface quality and level of detail. It offers a build volume (cylinder) of 200 mm in diameter and a height of 200 mm. The fullfield multilaser with two 300-watt fiber lasers from TRUMPF – which scan the entire build area – delivers top productivity. Melt Pool Monitoring and comprehensive process monitoring ensure the highest quality standards. The production process with the TruPrint 2000 is a closed powder circuit under shielding gas. This allows for easy and practical handling, with the highest operator safety.
Ominaisuudet
- Highly productive premium component quality
The fullfield multilaser with 55-µm beam diameter allows the machine to be highly productive and achieve high-quality printed parts. - Low costs per part
A perfectly coordinated machine concept allows for series components to be manufactured cost efficiently. - The highest quality standards
Melt Pool Monitoring and comprehensive process monitoring allow you to maintain high component quality consistently. - Simple operation
The inert, closed powder circuit ensures easy, practical parts and powder handling under shielding gas.
Tekniset tiedot
TruPrint 2000 |
|---|
| BUILD VOLUME (CYLINDER) | Diameter 200 mm x 200 mm Height |
| EFFECTIVE BUILD VOLUME (STANDARD) | Diameter 200 mm x 200 mm Height |
| PROCESSABLE MATERIALS | Metal powders for welding, such as stainless steels, tool steels, and aluminum, nickel-based, cobalt-chrome or titanium alloys. Current availability of materials and their parameters available on request. |
| PREHEATING (STANDARD) | Up to 200 °C |
| MAXIMUM LASER POWER AT THE WORKPIECE (TRUMPF FIBER LASER) | 300 W |
| BEAM DIAMETER (STANDARD) | 55 μm |
| LAYER THICKNESS | 20 – 100 μm |
| MINIMUM MEASURABLE OXYGEN LEVEL (STANDARD) | 100 ppm |
| CONNECTION AND CONSUMPTION | |
| ELECTRICAL CONNECTION (VOLTAGE) | 400/460 V |
| ELECTRICAL CONNECTION (CURRENT INTENSITY) | 32 A |
| ELECTRICAL CONNECTION (LINE FREQUENCY) | 50 Hz / 60 Hz |
| SHIELDING GAS | Nitrogen, argon |
| STRUCTURAL DESIGN | |
| DIMENSIONS (W X H X D) | 2180 mm x 2010 mm x 1400 mm |
| WEIGHT (INCLUDING POWDER) | 3200 kg |
