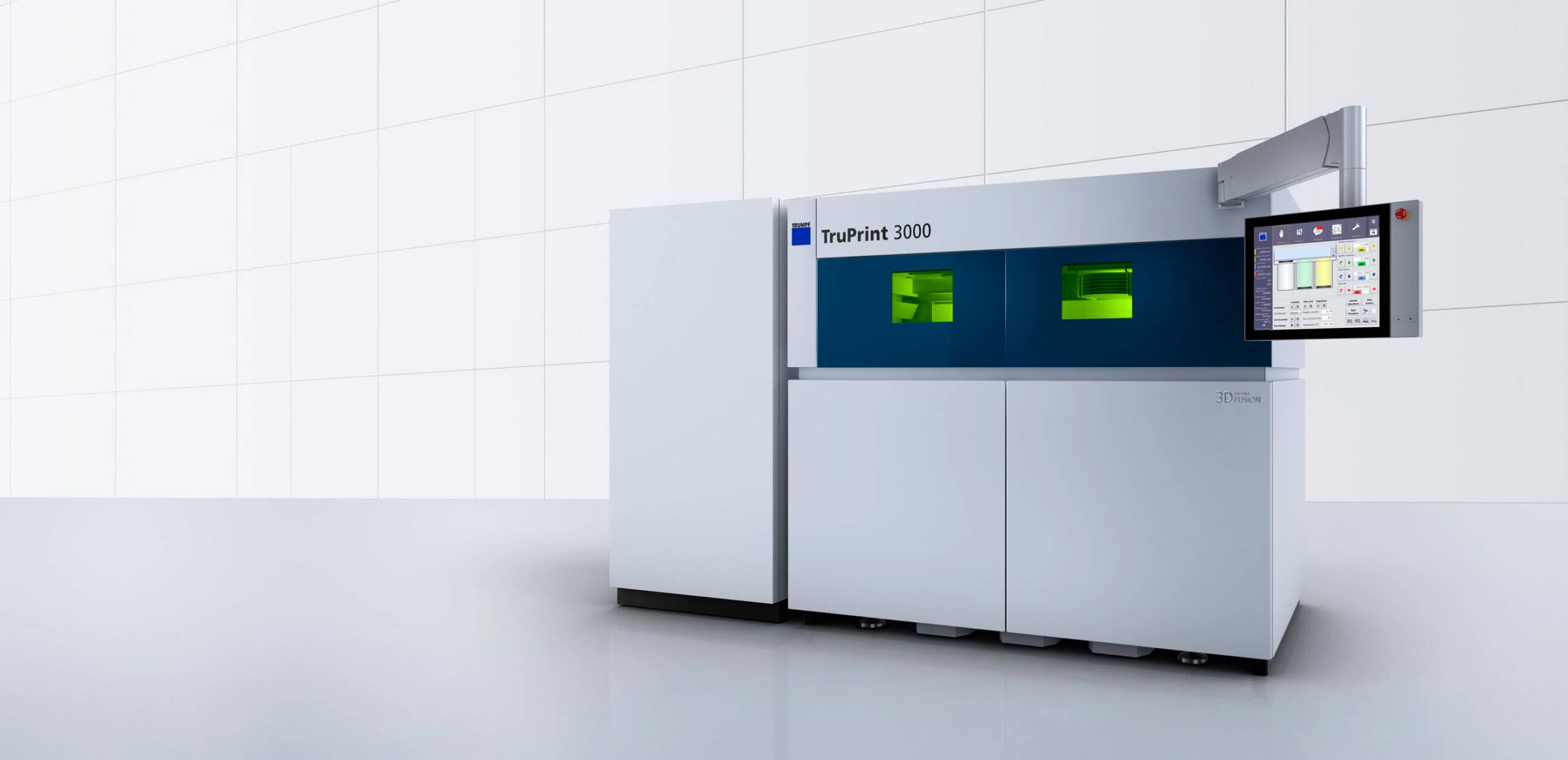

TruPrint 3000 on universaali keskikokoinen teollinen metallin 3D-tulostin, jossa on teollinen jauheen hallinta sekä multi-laser optio. Se on suunniteltu monimutkaisten, metalliosien joustavaan sarjatuotantoon. Se soveltuu erinomaisesti teollisuuden 3D-tulostus sovelluksiin. TruPrint 3000 tulostusalue on Ø 300 x 400 mm ja siinä on kahden 500W:n tai 700W laserin multilaser.
Consistent component quality thanks to a newly developed shielding gas stream.
Simple part and powder handling using shielding gas for consistent powder and part quality
Thanks to a different machine and periphery configurations for part and powder management.
Ensuring high-quality standards during the build job thanks to Melt Pool Monitoring.
With the full-field multilaser (2 x 500 or 2x 700W), you increase productivity, get shorter production times per component, and reduction of part costs. The multilaser scan fields are automatically calibrated to each other to achieve even greater precision. This means that you achieve very high surface quality – without a single seam mark. Full-field multilaser with two powerful TRUMPF fiber lasers with beam diameters of 80 µm.
Achieve even better part quality with our newly developed shielding gas concept. It guarantees a highly robust melt process during which the process chamber, as well as the optics protective glass, remain clean. An optimum shielding gas stream is achieved by the smaller process chamber and a primary and secondary gas flow. This ensures recurring high part quality, particularly in industrial series production.
The integrated powder feeder can be used to remove metallic powder from the finished component within the process chamber using shielding gas after the LMF process. The extracted powder is collected in a separate overflow bin and is reused for the next build job after being sieved.
The TruPrint 3000 has a quickly interchangeable build and powder supply cylinder. Cylinder setup and powder removal for build jobs can therefore be performed parallel to the LMF process. You significantly reduce your 3D printer’s downtime and non-productive time.
Select from two variants to remove powder from the component: remove powder from your part with the depowdering station (with the option of using shielding gas) for a very high degree of purification. Vibration technology also removes powder from complex component geometries. Alternatively, you can also remove powder from the part externally in the depowdering station while avoiding contact with the powder. Use the components of the industrial part and powder management system for several 3D printers and reduce your part costs.
Thanks to Melt Pool Monitoring for the TruPrint 3000, you can verifiably ensure the highest quality standards for printed components. Sensors detect deviations in the laser metal fusion process early on – that includes the full-field multilaser. Quality assurance is supplemented with Powder Bed Monitoring. Each powder layer is monitored visually; there is an option to automatically recoat conspicuous powder layers. Further options are available to meet verification requirements for certified processes: laser power calibration, focus position, and scan field calibration.
The TruPrint 3000 is equipped with one, or optionally as a multilaser with two, 500-W TRUMPF fiber laser(s) with a wavelength of around 1,070 nm. The focal diameter of the TruPrint 3000 system is industry standard 80 μm.
Do you have questions about how to produce a specific component on the TruPrint 3000 in a cost-effective and productive manner? Working together with you, the TRUMPF experts develop tailored solutions for your specific additive manufacturing application. Simply get in touch to arrange an individual meeting.
|BUILD VOLUME (CYLINDER)||Diameter 300 mm x 400 mm Height|
|PROCESSABLE MATERIALS||Metal powders for welding, such as stainless steels, tool steels, and aluminum alloys, nickel-based alloys, or titanium alloys. Current availability of materials and their parameters available on request.|
|PREHEATING (STANDARD)||Down to 200 °C|
|MAXIMUM LASER POWER AT THE WORKPIECE (TRUMPF FIBER LASER)||500 W, multilaser 2x500W|
|BEAM DIAMETER (STANDARD)||80 μm|
|LAYER THICKNESS||20 – 150 μm|
|BUILD RATE||5 – 120 cm³/h 1|
|MINIMUM MEASURABLE OXYGEN LEVEL||Up to 100 ppm|
|CONNECTION AND CONSUMPTION|
|ELECTRICAL CONNECTION (VOLTAGE)||400/460 V|
|ELECTRICAL CONNECTION (CURRENT INTENSITY)||32 A|
|ELECTRICAL CONNECTION (FREQUENCY)||50/60 Hz|
|SHIELDING GAS||Nitrogen, argon|
|DIMENSIONS (INCLUDING FILTER) (W X H X D)||3385 mm x 2070 mm x 1750 mm|
|WEIGHT (INCLUDING POWDER)||4300 kg|
