Yksi laserhitsausjärjestelmä lukemattomia etuja
Robotti, laseri prosessioptiikka, lasersuoja sekä kappaleenkäsittely – TruLaser Weld 5000 on avaimet käteen -järjestelmä automaattiseen laserhitsaukseen. Voit hitsata joustavasti suurella tunkeumalla tai hienosti pyöristettyjä, sileitä hitsejä yhdellä järjestelmällä. FusionLine lisäainelanka järjestelmä salii laserhitsauksessa, jopa 1mm ilmaraot. Monipuolinen järjestelmä voidaan räätälöidä tarkasti vastaamaan tuotantosi laserhitsaustarpeita.
New level of laser welding
The new BrightLine scan welding process enables you to robustly and flexibly weld small joint gaps, specifically adjust seam widths, and influence weld flaking. Elevate your laser welding work to a new level by adding new areas of application, such as thick sheet metal and aluminum, and reducing the amount of spatter.
Flexible laser welding
Heat conduction welding, deep penetration welding, or FusionLine filler wire that allows you to close gaps up to 1 mm wide – all on just one machine.
User-friendly operation
Functions such as the rotatable control panel and the additional status monitor make your work easier. Different component positioners are available depending on the desired loading option.
Parallel programming
With the simple TruTops Weld offline programming system
Automatic component position detection
The TeachLine sensor system reliably detects the seam placement.
Improving accessibility
The rotary module makes it easier to access your components allowing you to weld faster. The shielding gas nozzle rotates continuously around the optics. The robot does not need to reorient itself.
Tolerant laser welding with FusionLine
This allows you to close gaps up to 1 mm wide and to laser-weld economically without optimizing your component portfolio for laser welding. The benefit for you: The machine can process more components and your capacity increases.

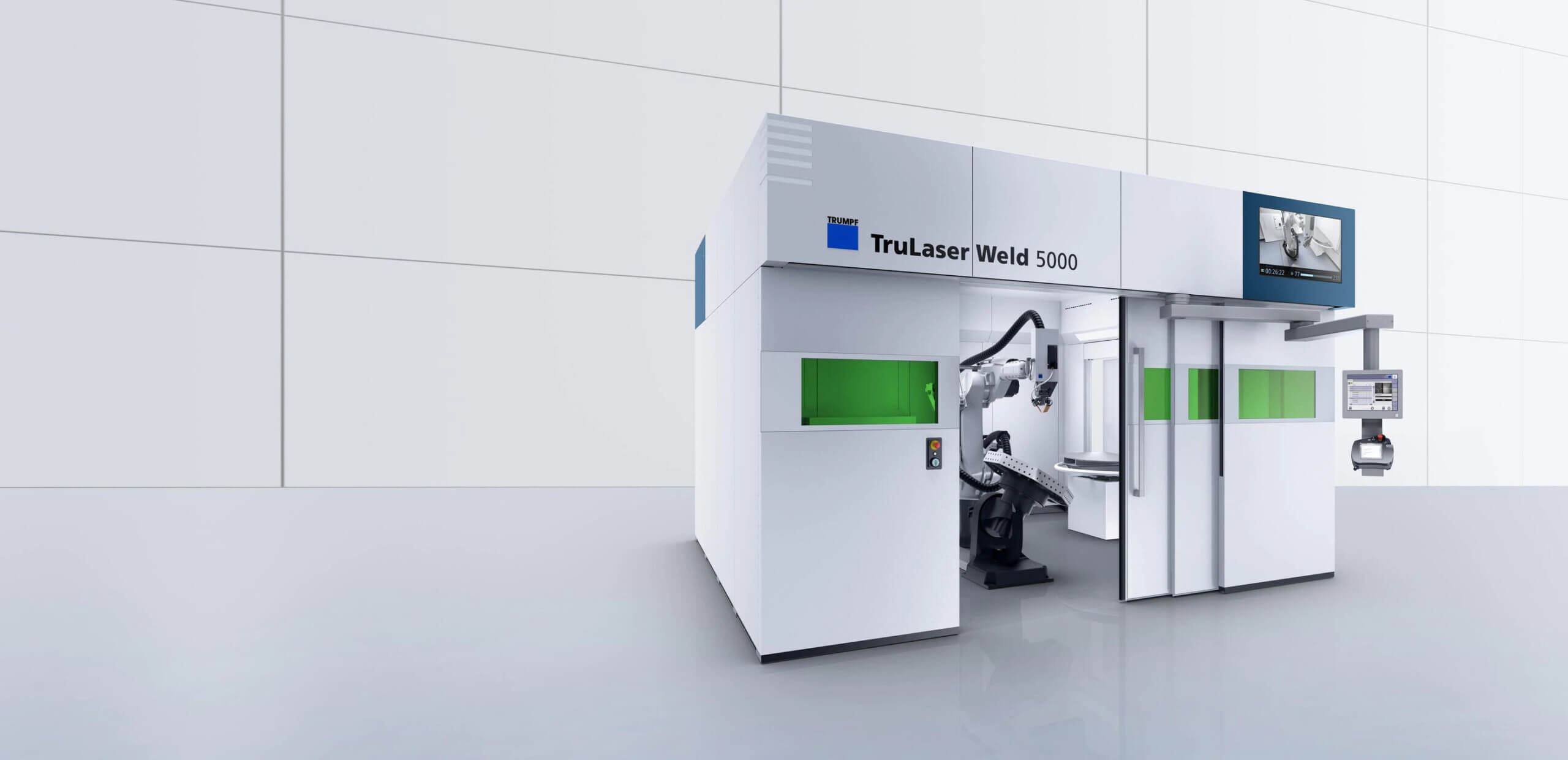

TruLaser Weld 5000
| AXIS DATA | |
| TYPE | High accuracy robot |
| NUMBER OF AXES | 6 |
| REPEATABILITY | +/- 0.05 mm |
| DIMENSIONS, WEIGHTS | |
| POSSIBLE CABIN DIMENSIONS | 4800 mm x 4800 mm x 3200 mm 4800 mm x 5950 mm x 3200 mm 5950 mm x 4800 mm x 3200 mm 5950 mm x 5950 mm x 3200 mm 7100 mm x 4800 mm x 3200 mm 8250 mm x 4800 mm x 3200 mm |
| ROTATE AND TILT POSITIONER | |
| TYPICAL MAXIMUM PART SIZE | 2000 mm x 1000 mm x 700 mm |
| MAXIMUM LOADING | 400 kg |
| ROTARY TABLE | |
| MAXIMUM WORK AREA | 1600 mm x 800 mm x 1200 mm |
| MAXIMUM LOADING (PER SIDE) | 250 kg |
| ROTATIONAL CHANGER | |
| MAXIMUM WORK AREA | 2000 mm x 1000 mm x 1100 mm |
| MAXIMUM LOADING (PER SIDE) | 750 kg |
| TURNOVER POSITIONER | |
| TYPICAL MAXIMUM PART SIZE | 4000 mm x 1500 mm x 1000 mm |
| MAXIMUM LOADING | 1000 kg |
| LASER-SPECIFIC DATA | |
| AVAILABLE LASERS | TruDisk 2000, 3001, 3002, 4001, 4002, 5001, 5002, 6001, 6002, 8001, 8002 |
