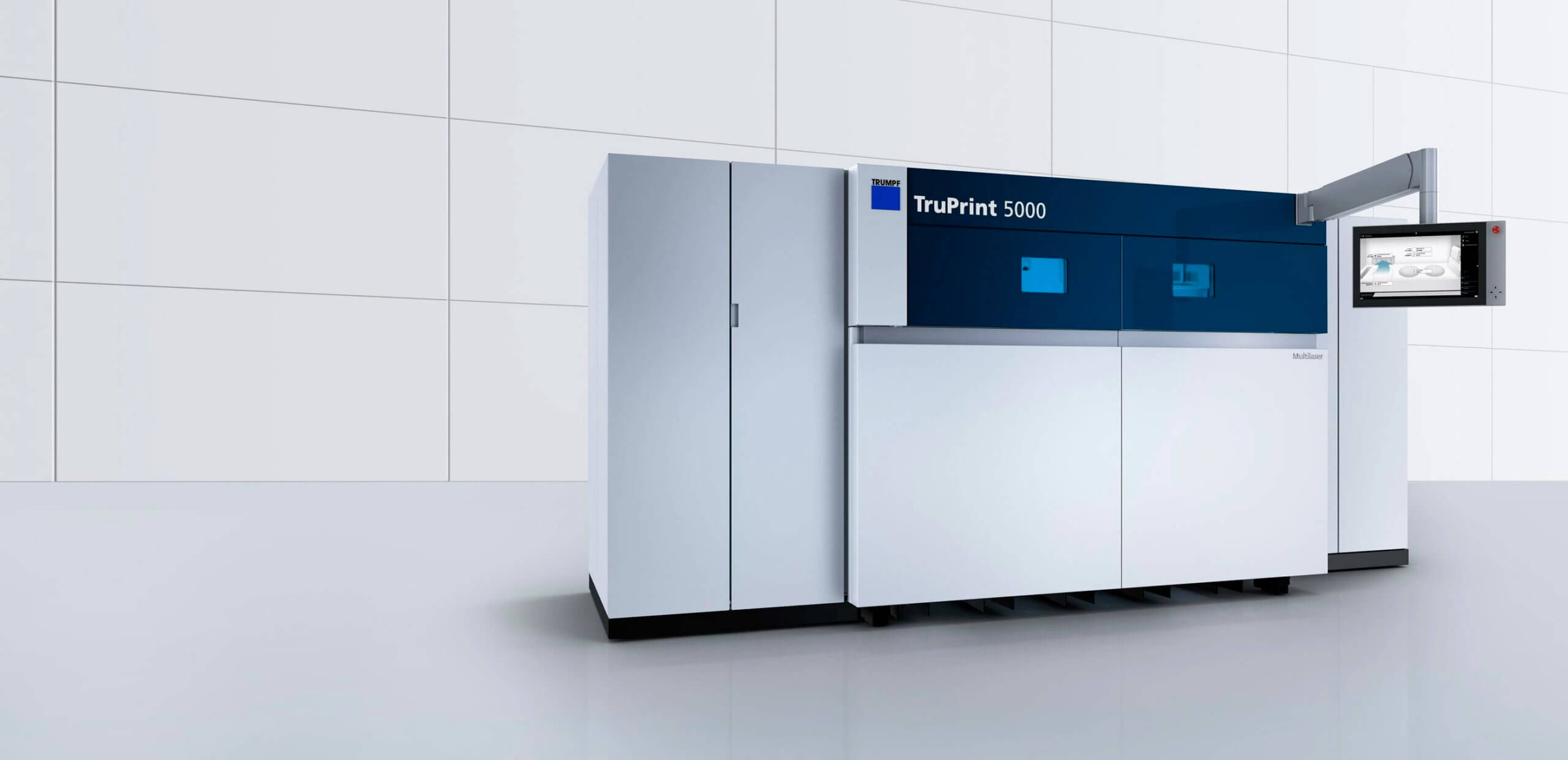

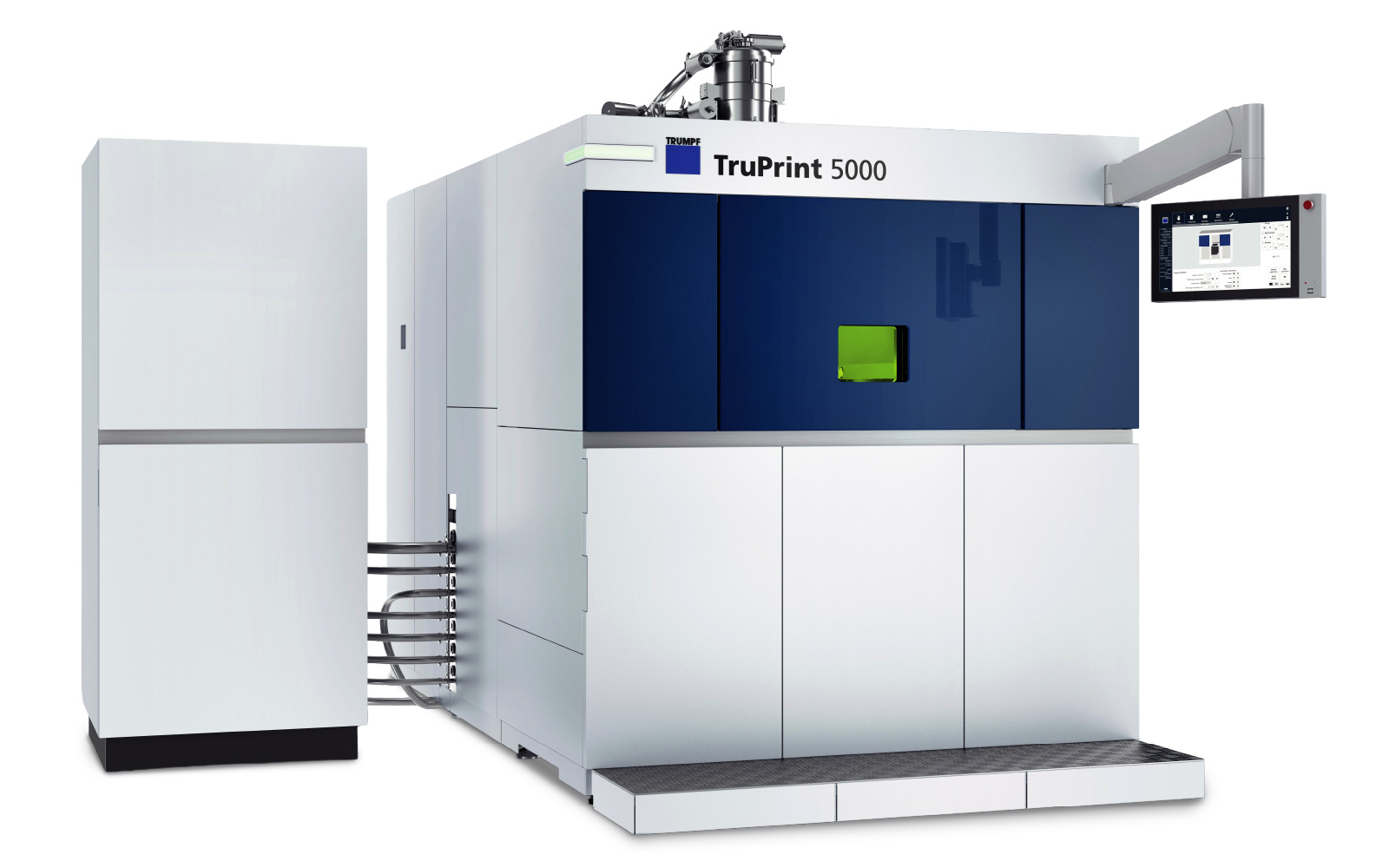

TruPrint 5000

The automatic process start allows for fast set-up and offers a high degree of process reliability.

The build and supply cylinders can be exchanged quickly and safely for work parallel to production.

The ideal basis for downstream processes such as sawing, milling, or grinding.

Keep an eye on the powder coating, weld pool, machine status, and productivity at all times and have full control over the component quality, layer-by-layer.

Maximize your productivity with the TRUMPF full field multilaser: Three 500 watt TRUMPF fiber lasers simultaneously scan the entire build area (100% overlap), which ensures that you achieve the best build rates. All of the lasers can be allocated in the build area with flexibility, which gives the components an optimal surface quality without any seam marks.

Through optional preheating of up to 500°C you can achieve a visibly better component quality for many applications and materials. This means you benefit from fewer support structures and stress cracks in titanium (Ti6AI4V). Furthermore, certain materials such as H11 (1.2343) and H13 (1.2344) can only be processed at temperatures of 500°C.

Take advantage of a detailed quality check and documentation, layer-by-layer. This enables you to detect process deviations early on and to visualize areas of the component that are critical. In addition, you can automatically analyze the data against a reference part. You can also monitor all of the weld pools in parallel with ease.

Short throughput times for large powder volumes and a closed powder circuit provide a high degree of productivity and safety. The central components of the sieving station, powder removal station, and powder silo provide the basis for series production on an industrial scale and under a shielding gas atmosphere.

As the build and supply cylinders can be exchanged quickly, cylinder set up, powder removal, and cooling of hot build jobs can be performed parallel to the LMF process. This reduces idle time and non-productive time and increases the machine’s productivity.

The 500-watt fiber lasers operate using a wavelength of around 1,070 nm. The focal diameter, which can be individually adjusted between 100 and 500 μm, means it is possible to react to different component requirements with outstanding flexibility.
